Gummy Cooker
Commercial gummy cooker for repeatable production
Key Features
- 26.4 U.S. gal / 100 L vessel — commercial capacity for gummy, candy and liquid confectionery preparation
- Jacketed heat-transfer system — 6.24 sq ft / 0.58 m² heating area; QC320 is the specified heat-transfer oil grade
- 9 kW electrical rating — documented power rating for this 100L configuration
- High-shear processing capability — supports intensive ingredient blending during sugar-based and liquid confectionery batching
- PTFE wall-scraping elements — help keep product moving along the vessel surface during agitation
- 46 rpm agitator speed — standard mixer speed for the documented configuration

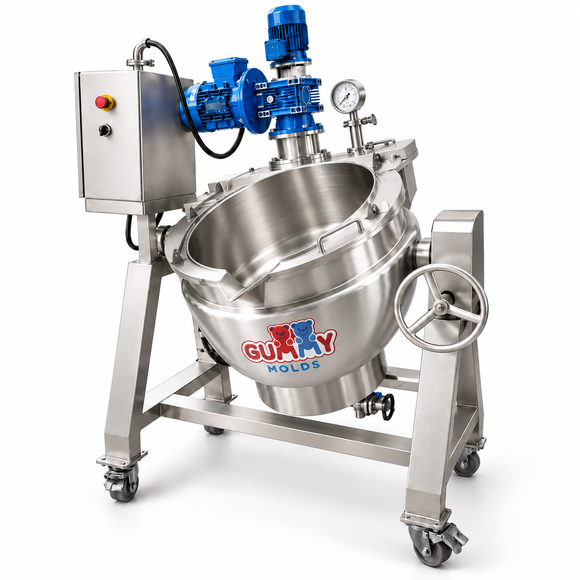

- Up to 180° vessel tilt — handwheel-operated rotation supports controlled batch discharge and transfer
- SUS304 product-contact stainless steel — stainless surfaces wherever the batch contacts the machine
- Machine-mounted electrical controls — dedicated control enclosure integrated with the cooker frame
- Mobile caster frame — swivel wheels allow the cooker to be repositioned within the production area
Built for commercial gummy production
Commercial gummy batch cooking in a dedicated 100L jacketed system. The Gummy Molds 100L Commercial Gummy Cooker combines controlled jacket heating, active mixing, vessel-wall scraping, high-shear processing and manual tilt discharge in one mobile platform. Its 26.4 U.S. gal (100 L) vessel gives growing confectionery producers substantially more batch capacity than tabletop or pilot-scale equipment.
Built for Gummy Production
The 100L cooker is designed for the heated batch-preparation stage before depositing. It can be used for sugar melting and liquid confectionery cooking while the mixer, scraper system and high-shear function keep the batch moving through processing. Once the batch is ready, the vessel can be tilted for transfer into the next stage of production.
Who the 100L Size Fits
This size is intended for growing commercial producers that need more cooking capacity than small-batch equipment without moving immediately into a 300L or 500L vessel. Supply voltage and phase are finalized during order review so the machine configuration can be matched to the installation requirements.
What's Included
- 100L jacketed stainless-steel cooker assembly
- Primary agitator / stirring assembly
- High-shear processing system
- PTFE vessel-scraping components
- Machine-mounted electrical control enclosure
- Manual tilt handwheel and support frame
- Swivel caster set
Equipment Specifications
| Vessel Capacity | 26.4 U.S. gal / 100 L |
| Pot Diameter | 27.6 in / 700 mm |
| Pot Depth | 17.7 in / 450 mm |
| Heating Area | 6.24 sq ft / 0.58 m² |
| Heating System | Jacketed vessel using heat-transfer oil |
| Specified Heat-Transfer Oil | QC320 |
| Rated Electrical Power | 9 kW |
| Agitator Speed | 46 rpm |
| Tilt Range | Up to 180° |
| High-Shear Processing | Included |
| Vessel Scraping | PTFE wall-scraping mixer elements |
| Product-Contact Material | SUS304 stainless steel |
| Controls | Machine-mounted electrical control enclosure |
| Tilt Control | Manual handwheel |
| Mobility | Swivel casters |
| Supply Voltage / Phase | Finalized during order review |
Build the Production Line
Pair the cooker with commercial gummy depositors, commercial gummy molds, and other confectionery production equipment to build a complete gummy manufacturing workflow.
Choose the Right Cooker Capacity
The 100L model is the smallest cooker in the current Gummy Molds range. Larger cooker sizes are intended for higher-volume batch production and will be documented individually so electrical, dimensional and operating specifications are not assumed across models. Browse commercial gummy cookers and kettles to compare available capacities.
